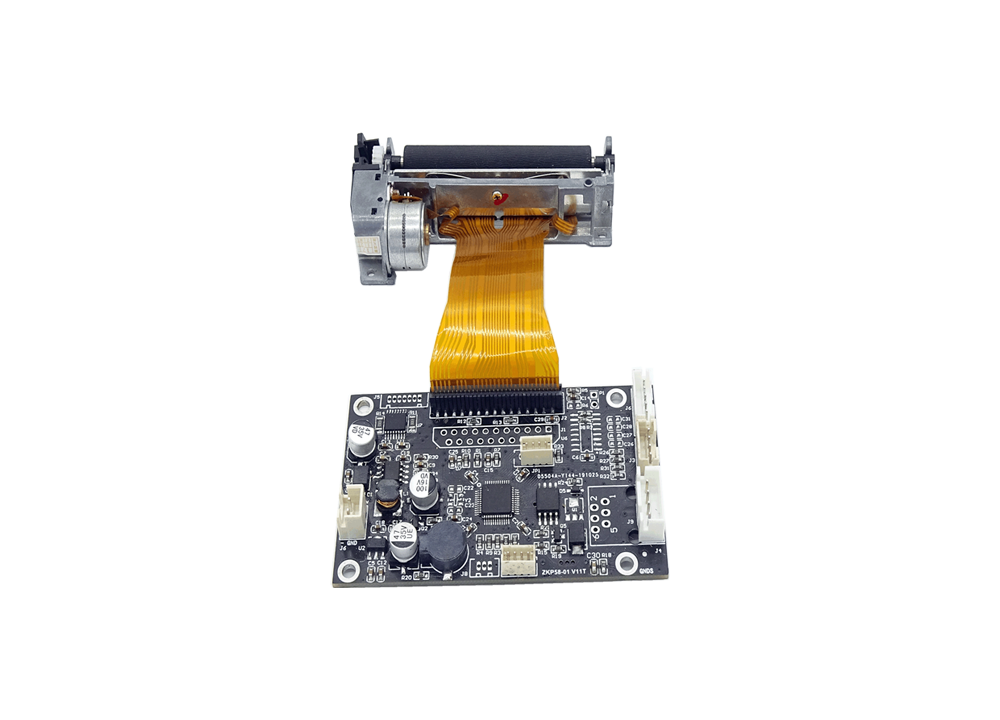

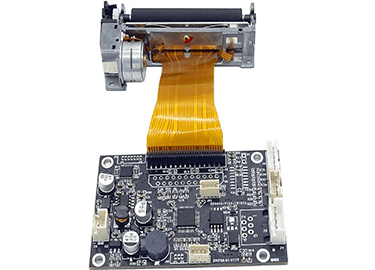

Product name: 58 thermal printing module
Product introduction:
The ZKP58 series printing module is a 58MM thermal micro-printing driver board carefully designed by Shenzhen Yixin Technology Co., Ltd. for ordinary bill printing services. It has the characteristics of compact size, perfect function, stable performance, etc. The driver board is compatible with ESC/POS command set, additional Added instructions for cash drawer control, peripheral status check, NV LOGO picture download and printing, and the driver board has a 5KB large-capacity buffer to ensure continuous printing without data loss. The driver board uses USB and serial communication to facilitate embedding in various self-service Service equipment.
Application areas:
Self-service equipment for shopping malls, restaurants, specialty stores, warehousing, taxation, banking, medical care, postal services, etc.
Communication description:
USB communication:
Standard USB2.0 printing interface;
Maximum transmission rate 12M;
Provide driver installation package;
RS232/TTL communication:
Baud rate: 9600-115200bps, the default is 9600bps, which can be modified;
Data bits: 8 bits;
Check: None;
Stop bit: 1 bit or more;
Handshake mode: RTS/CTS;

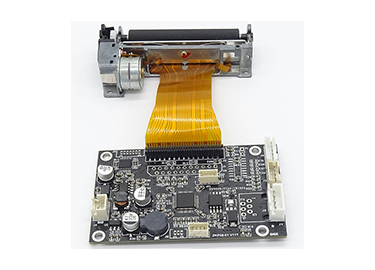

Interface Description:
J6: Power input (HX2PIN 2.54MM)
Pin | symbol | Description |
1 | VIN | Power input 12-24V, >2A |
2 | GND | Power ground |

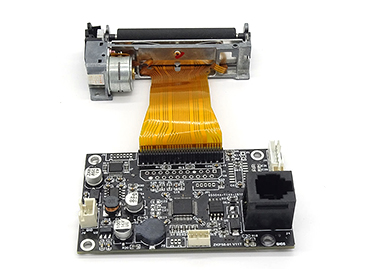

J4: Cash drawer interface (RJ11 optional)
Pin | symbol | Description |
1 | GND | Power ground |
2 | NC | air |
3 | VIN | Power supply (12~24V is equal to J6 input voltage) |
4 | CHECK_IN | Cash drawer status input signal |
5 | VOUT | Drive output, can drive 2A load |
6 | GND | Power ground |
J9: Cash drawer interface (XH4PIN 2.54MM optional)
Pin | symbol | Description |
1 | VIN | Power supply (12~24V is equal to J6 input voltage) |
2 | VOUT | Drive output, can drive 2A load |
3 | CHECK_IN | Cash drawer status input signal |
4 | GND | Power ground |
J3: USB interface (XH4PIN 2.0MM)
Pin | symbol | Description |
1 | GND | Power ground |
2 | D+ | DP USB data |
3 | D- | DM USB data |
4 | VBUS | USB power supply |
J6: Serial port, TTL/RS232 optional (XH4PIN 2.0MM)
Pin | symbol | Description |
1 | NC | No need to |
2 | VDD(3.3V) | The system power supply can be disconnected |
3 | GND | Communication place |
4 | RXD | Drive board receiving (connect external TXD) |
5 | TXD | Drive board sending (connect to external RXD) |
Dimensions:
PCB size:
PCB size (length * width * height) cash drawer uses RJ11 interface | 75.03 * 45.67 * 19.8MM | |
PCB size (length * width * height) cash drawer uses XH2.54 interface | 75.03 * 45.67 * 10.3MM | |
Center length of positioning hole | 62.33MM | |
Center width of positioning hole | 39.62MM | |
Fixing screw specifications | M3 (4 pcs) | |
